Barbed Wire
- Commodity name： Barbed Wire
- Product Description
-
Barbed wire(also called barb wire)is a kind of wire that is used to make cheap fences.It has sharp metal points[1](barbs),which make climbing over it painful.Barbed wire was invented in 1867 in the United States by Lucien B.Smith.Barbed wire can be use for lots of things.

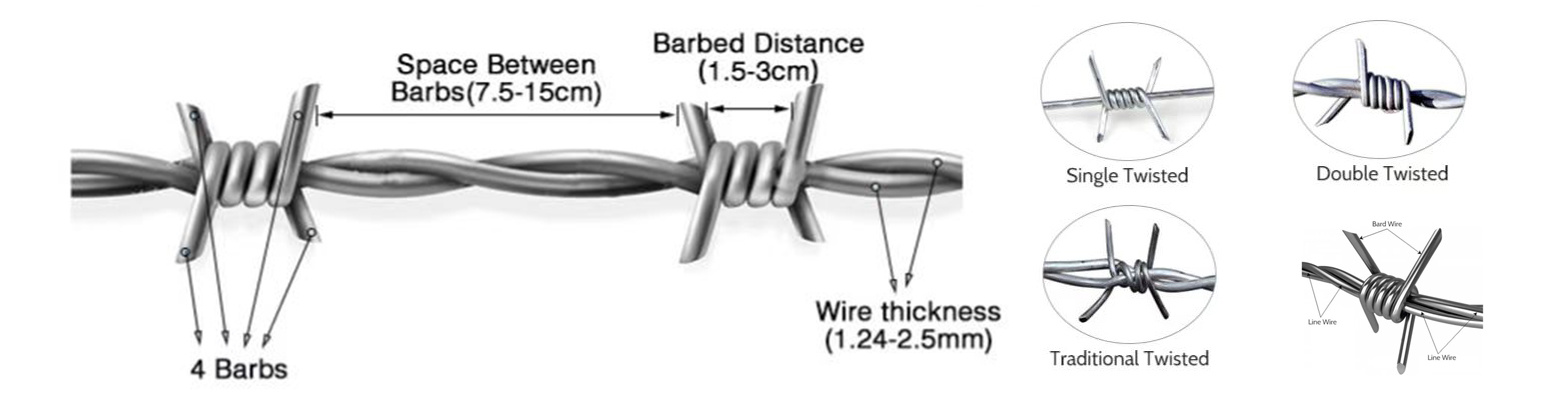

The structure of the wire mesh
Barbs are very important for the barbed wire.The strong barbs with sharp points can resist bending.It can frighten and de fend thieves and intruders.They can also contain your animals and livestock safely in your farm or ranching.The barb can be single or double wires for different applications.
*Single barb.Also known as 2-point barbed wire.It is contains single barb wire twisted on the line wire.The single barb wires is used in the common applications.Or if your farms or pens has enough space for rearing animal or livestock,you can choose the single barb(2-point)barbed wire.
*Double barbs.It is also called 4-point barbed wire.Use two barb wires twisted together onto the line wire.It can supply
greater hurt factor for your sites or ranching.It is widely used in the heavy duty applications.Or if your farms or ranches has a herd pressure,you can choose the 4-point barbed wire.
Gauge of
Approximate Length per Kilo in Meter
Strand and Barb in B.W.G.
Barbs Spacing 3"
Barbs Spacing 4"
Barbs Spacing 5"
Barbs Spacing 6"
12x12
6.0617
6.759
7.27
7.6376
12x14
7.3335
7.9051
8.3015
8.5741
12-1/2x12-1/2
6.9223
7.719
8.3022
8.7221
12-1/2x14
8.1096
8.814
9.2242
9.562
13x13
7.9808
8.899
9.5721
10.0553
13x14
8.8448
9.6899
10.2923
10.7146
13-1/2x14
9.6079
10.6134
11.4705
11.8553
14x14
10.4569
11.659
12.5423
13.1752
14-1/2x14-1/2
11.9875
13.3671
14.3781
15.1034
15x15
13.8927
15.4942
16.6666
17.507
15-1/2x15-1/2
15.3491
17.1144
18.406
19.3386
Barbed distance :7.5-15/cm
Barbed length:1.5-3/cmProduct Display
Product Advantage
1. It has the characteristics of aesthetics,practicality, convenient transportationand simple installation.
2. High anti-damage performance, goodsteel, beautiful shape, wide field ofvision, easy installation.
3. Suitable bending, the surface can usea variety of colors of plastic processing,the column and the mesh of different colors is pleasing to the eye.
4.Can be customized, with variousspecifications, there is always one to meet your requirements.
5.Jniform mesh, advanced production machines, no burrs, no hand injuries.
Product Application Scenario
Packaging of products

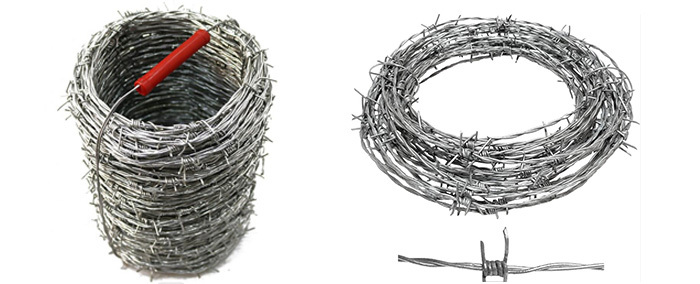

The barbed wire is commonly supplied in rolls.And there are so many barbs on the roll surface.
For convenient loading,handling and transporting,we are equipped different handles for your choice.Additional,
it is very safe for manual operation and will not hurt people when using it.
*Steel wire roller and steel wire handle.
*Steel wire roller and plastic handle.
*Steel wire roller and wooden handle.
*Wooden roller and rope handle.
Inside waterproof paper,outside woven bag for barbed wire,Or according to your requirements.
Company Profile
Our company’s main products include gabion basket,fence metal panel,vineyard metal post,chain link fence and welded wire mesh.Currently,we have 20 gabion mesh machines with a daily production capacity of 100000 square meters.We have 18 production equipment of the fence metal panel,daily production reaches 2000 meters.The total annual production value reaches 300 million RMB.Our company always strictly follows ISO management in the procurement,production,sales,and after sales service processes. Quality is based on complete regulations and quality determines the survival of our company,scientific management determines efficiency and good honesty leads to better development.Looking forward,we are sincerely hoping that we will create a better tomorrow with you with our quality product,reasonable price and perfect service.Welcome to contact us for business negotiation.
Our Qualifications
We emphasize the concept of quality first and take advantage of our advanced equipment and technology,in service,we hold the idea and attitude of honesty,cooperation and communication. We have our own production workshop.Our company always strictly follows ISO management in the procurement,production,sales,and after sales service processes.
Exhibition & Client Group Photo
Our products are widely sold across China and meanwhile expanded to countries and districts in Europe,America,Asia,Mideast and Africa.Our company and our products get a good applause by customers both domestic and abroad.
