Steel Grating
- Commodity name： Steel Grating
- Product Description
-

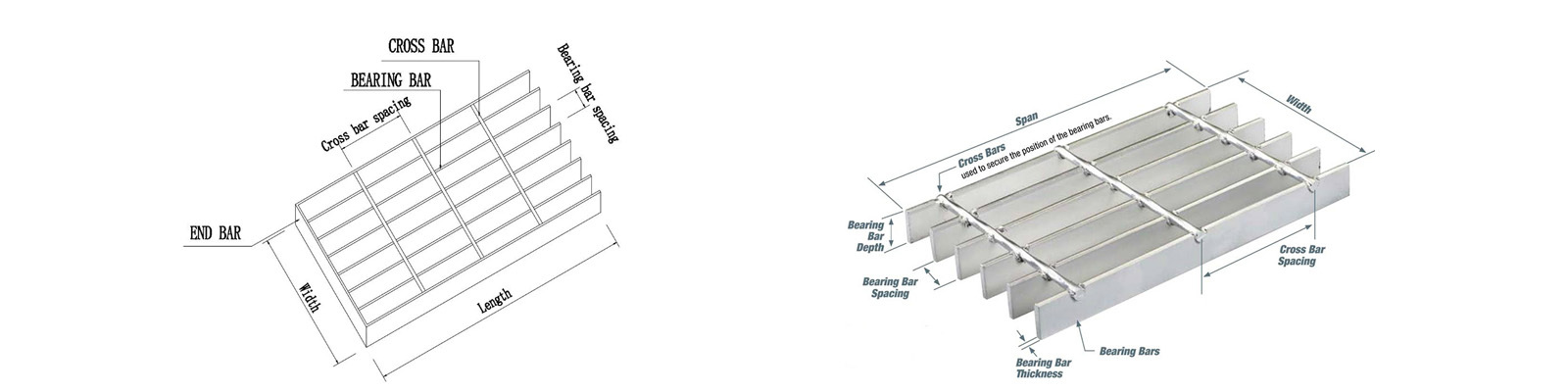

Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, over lock process such as processing and into customer requirements finished products.
Bar grating, Steel grating,steel grating plate, Expanded metal grating is specially designed with a good percentage of open gaps,and suitable for use in areas requiring good ventilation and emission of light. Its installation is easy and simple, and hence time saving.
As the grating is easily cut according to required specifications, that makes the field work simple and quick. Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, over lock process such as processing and into customer requirements finished products.
Material Standard
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,
Mild steel & Low carbon steel, etcBearing Bar
(Width x Thickness)25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etcBearing Bar Pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.Twisted Cross Bar Pitch
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface Treatment
Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.

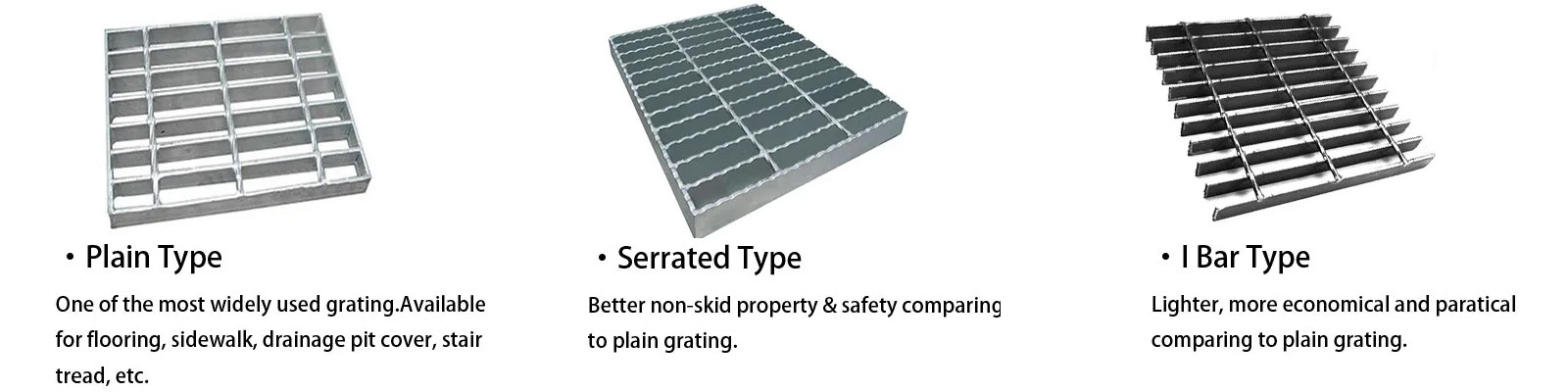

Grating Style
Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Packing
(1) Bandage and Paperboard: Generally applies to neat steel plate;
(2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
(3) Steel Pallet: Traditional export packing.Product type
According to the different types of flat steel, the steel grillageis Mainly divided into the following three types, comparison of features.
Surface Treatment
Black / Bare Steel: No finish, life is very short, but the price is the cheapest.
Painted Coat: The anti-rust effect is general and can be any color.
Electro-galvanized: A small amount of zinc coating, easy to cause slight corrosion in humid environment.
Hot-dip galvanized: The most commonly used method to provide the best anti-rust .
Product Application Scenario
Features
1、The solid grid pressure welding structure makes it has the characteristics of high load bearing, high strength, light structure, easy to lift and so on.
2、Beautiful appearance, durable: hot dip zinc surface treatment makes it has quite good anti-corrosion ability, the surface luster is beautiful.
3、Ventilation, lighting, heat dissipation, explosion-proof, anti-skid performance is good.
4、No dirt, no rain and snow, no water, self-cleaning, easy maintenance.
Company Profile
Our company’s main products include gabion basket,fence metal panel,vineyard metal post,chain link fence and welded wire mesh.Currently,we have 20 gabion mesh machines with a daily production capacity of 100000 square meters.We have 18 production equipment of the fence metal panel,daily production reaches 2000 meters.The total annual production value reaches 300 million RMB.Our company always strictly follows ISO management in the procurement,production,sales,and after sales service processes. Quality is based on complete regulations and quality determines the survival of our company,scientific management determines efficiency and good honesty leads to better development.Looking forward,we are sincerely hoping that we will create a better tomorrow with you with our quality product,reasonable price and perfect service.Welcome to contact us for business negotiation.
Our Qualifications
We emphasize the concept of quality first and take advantage of our advanced equipment and technology,in service,we hold the idea and attitude of honesty,cooperation and communication. We have our own production workshop.Our company always strictly follows ISO management in the procurement,production,sales,and after sales service processes.

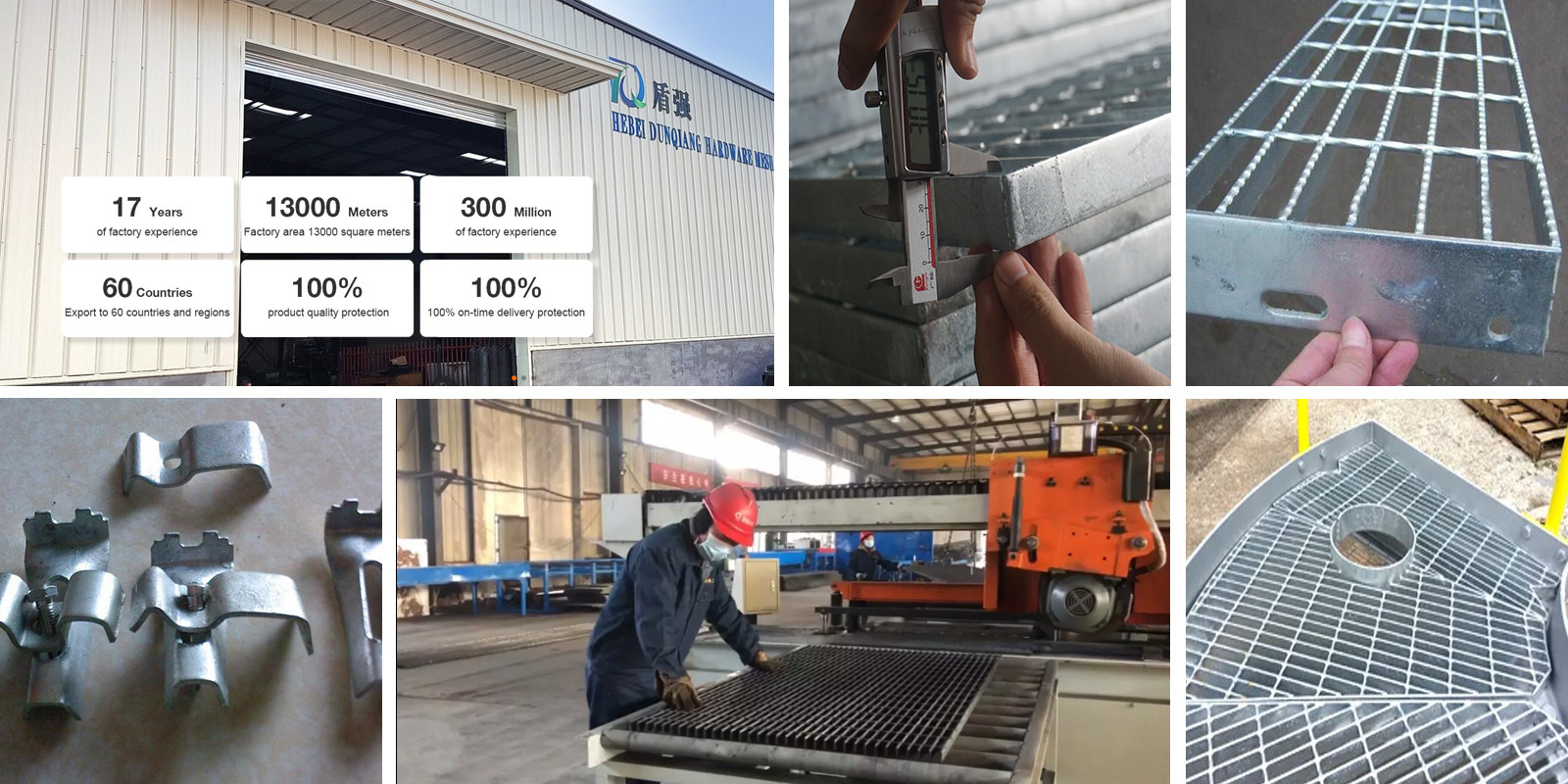

Exhibition & Client Group Photo
